Model: A-3040-CA

Electric Counterbalance Stacker – 2200 lb Capacity, 118" Lift Height, No-Leg Design for Warehouse & Dock Use Canada

$13,379.00 $11,970.00 Save $1,409.00
4 in stock
Fast U.S. Warehouse Shipping Most in-stock orders ship within 2–3 business days
Freight Calculated at Checkout Shipping options are calculated based on your delivery location.
Lifting Height: 118"
✓ For details on returns and refunds, please see our Return Policy .
Lifting Height: 118"

Product details

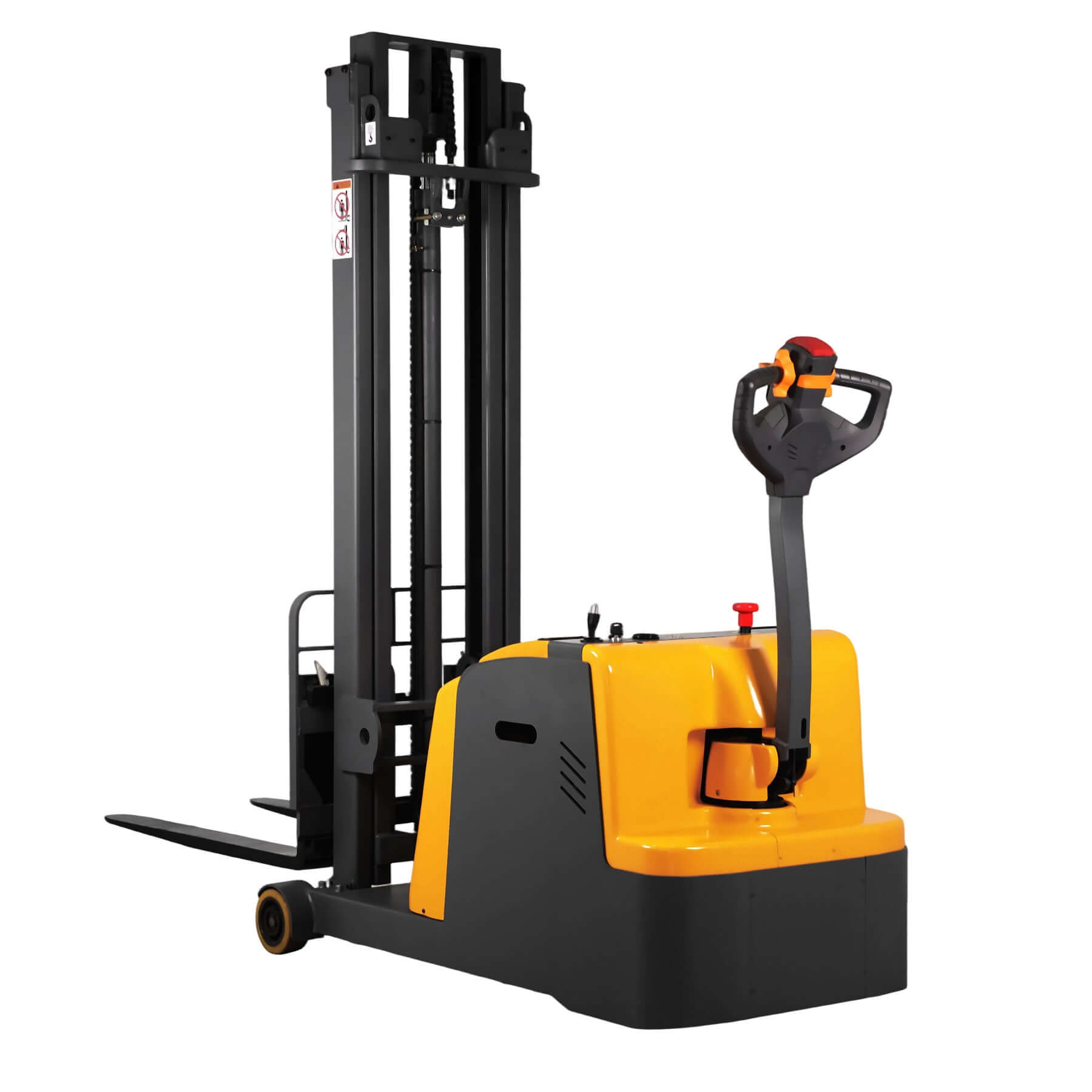

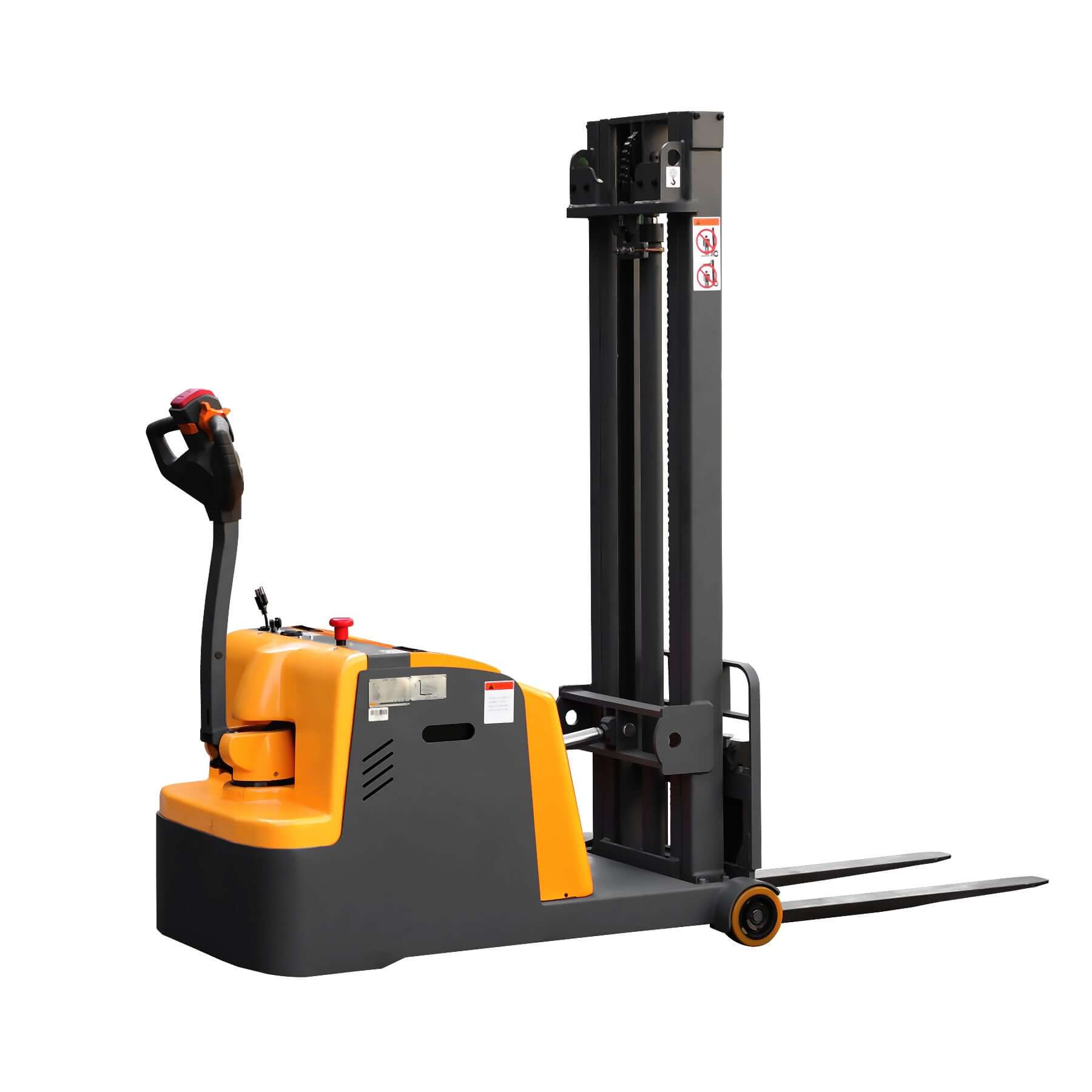

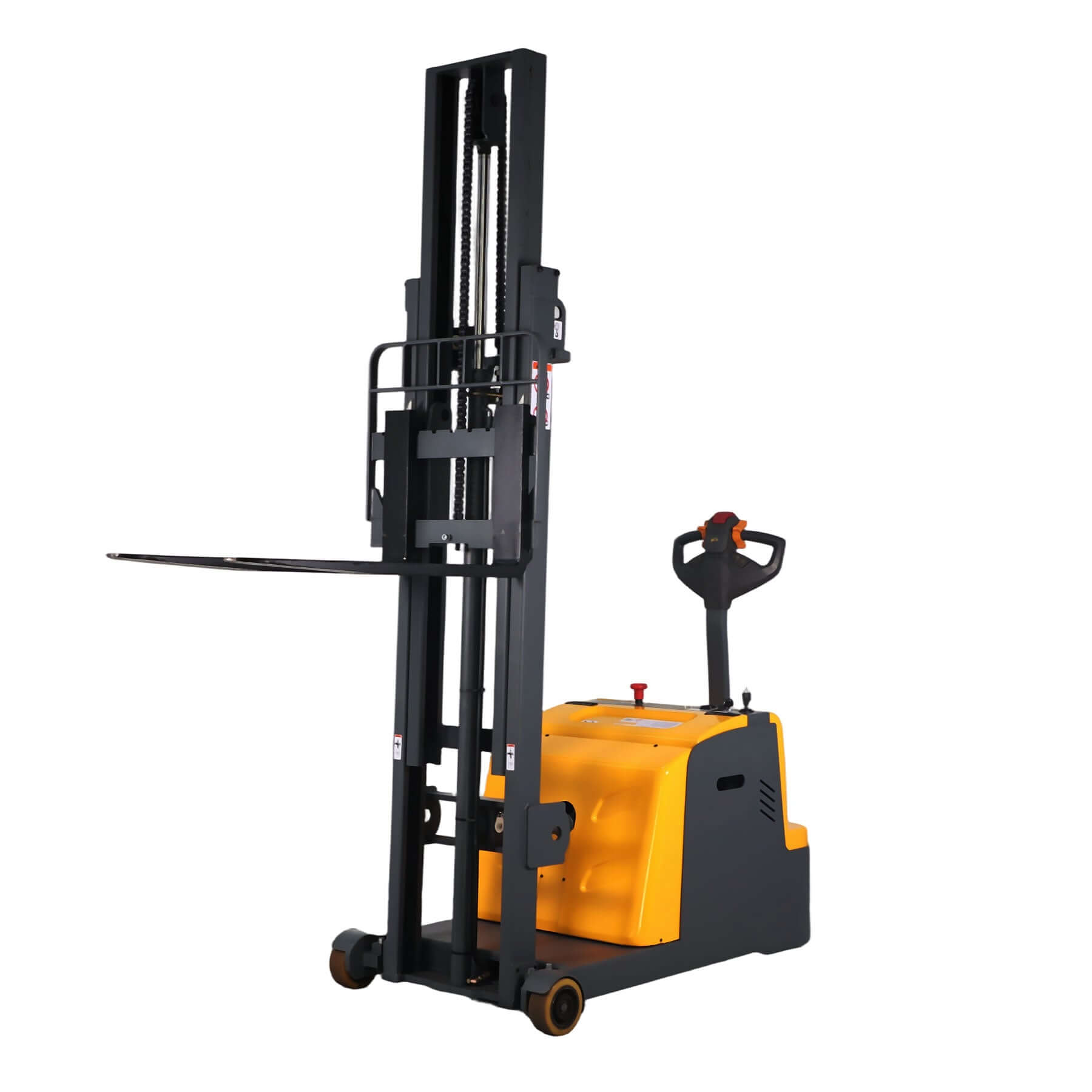

The Tory Carrier Electric Counterbalance Stacker is built for efficient material handling in warehouses, docks, and distribution centers across Canada. With a 2200 lb lifting capacity and 118" lift height, this stacker’s legless fork design makes it perfect for handling closed pallets, containers, and truck loading operations.

Key Features

  • Legless Fork Design: Access closed pallets and containers easily—no support legs needed.
  • Tilt-Assist System: Provides better control during stacking and unloading, improving operational speed and safety.
  • Three-Point Support: Front load wheels and rear drive wheel ensure superior balance and stability.
  • Smooth Maneuvering: Performs well on concrete, epoxy floors, and other typical warehouse surfaces.
  • Easy Maintenance: Top-mounted drive wheel and modular electrical system (90% integrated components) allow quick servicing and minimal downtime.
  • Battery Care: Charge at least once a month during storage to maintain battery health and extend service life.

Ideal for warehouses, logistics companies, and light industrial environments, the Tory Carrier Electric Counterbalance Stacker helps Canadian businesses boost productivity while maintaining reliable performance and low maintenance costs.

Load Capacity 2,200 lb
Load Center 15.7 in

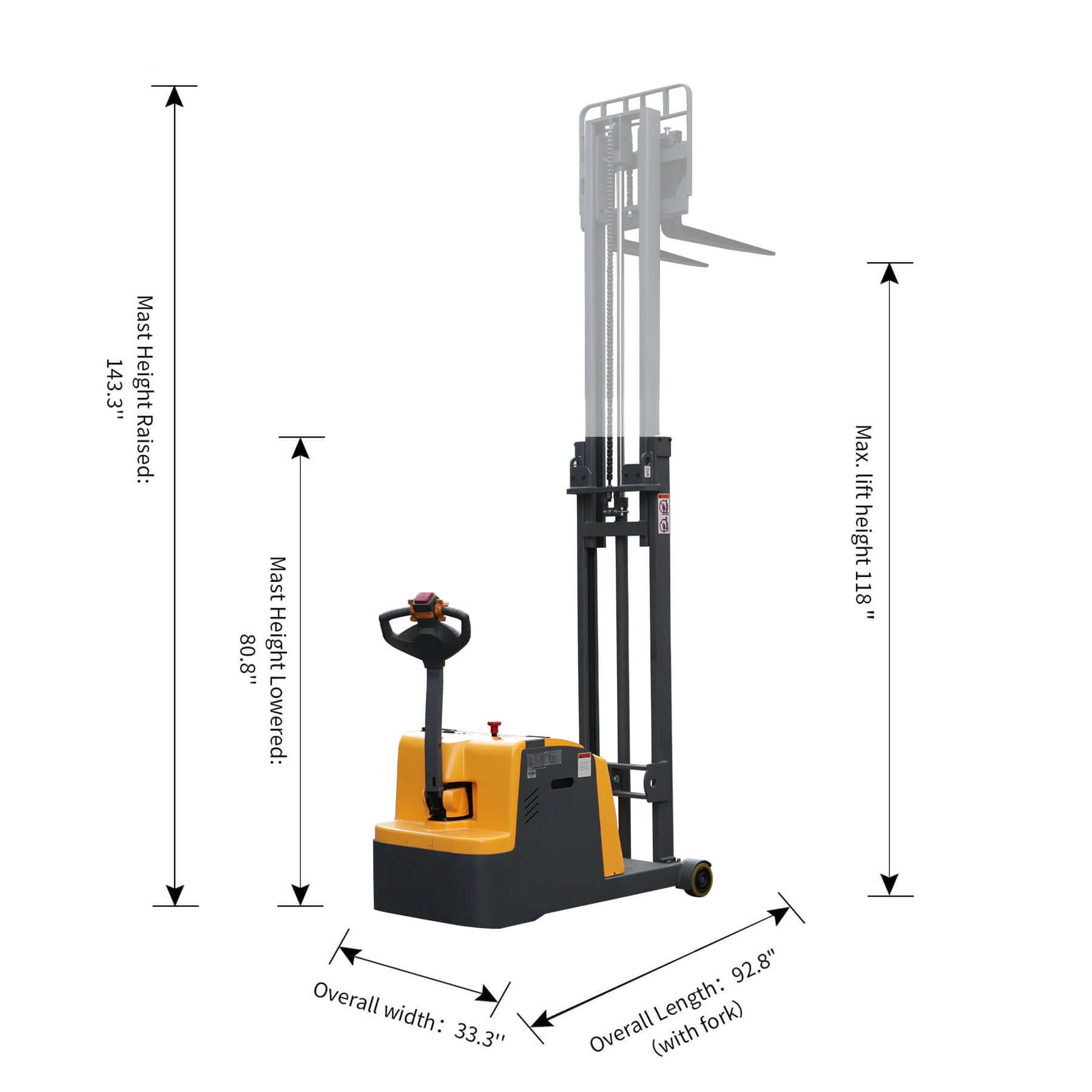

Maximum Lift Height 118 in
Mast Height (Lowered) 80.8 in
Mast Height (Extended) 143.3 in
Overall Length 96.7 in
Overall Width 33.3 in

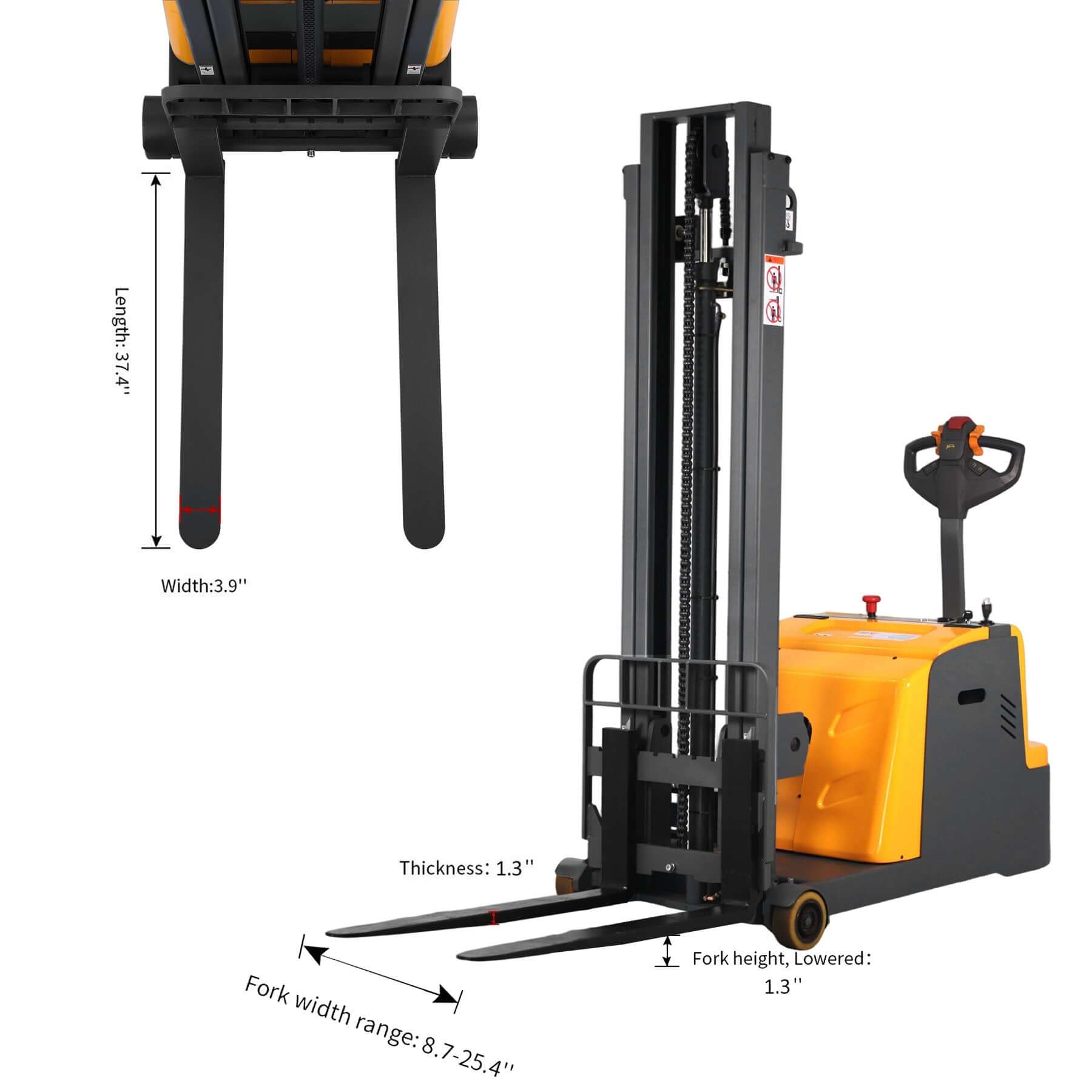

Fork Length 37.4 in

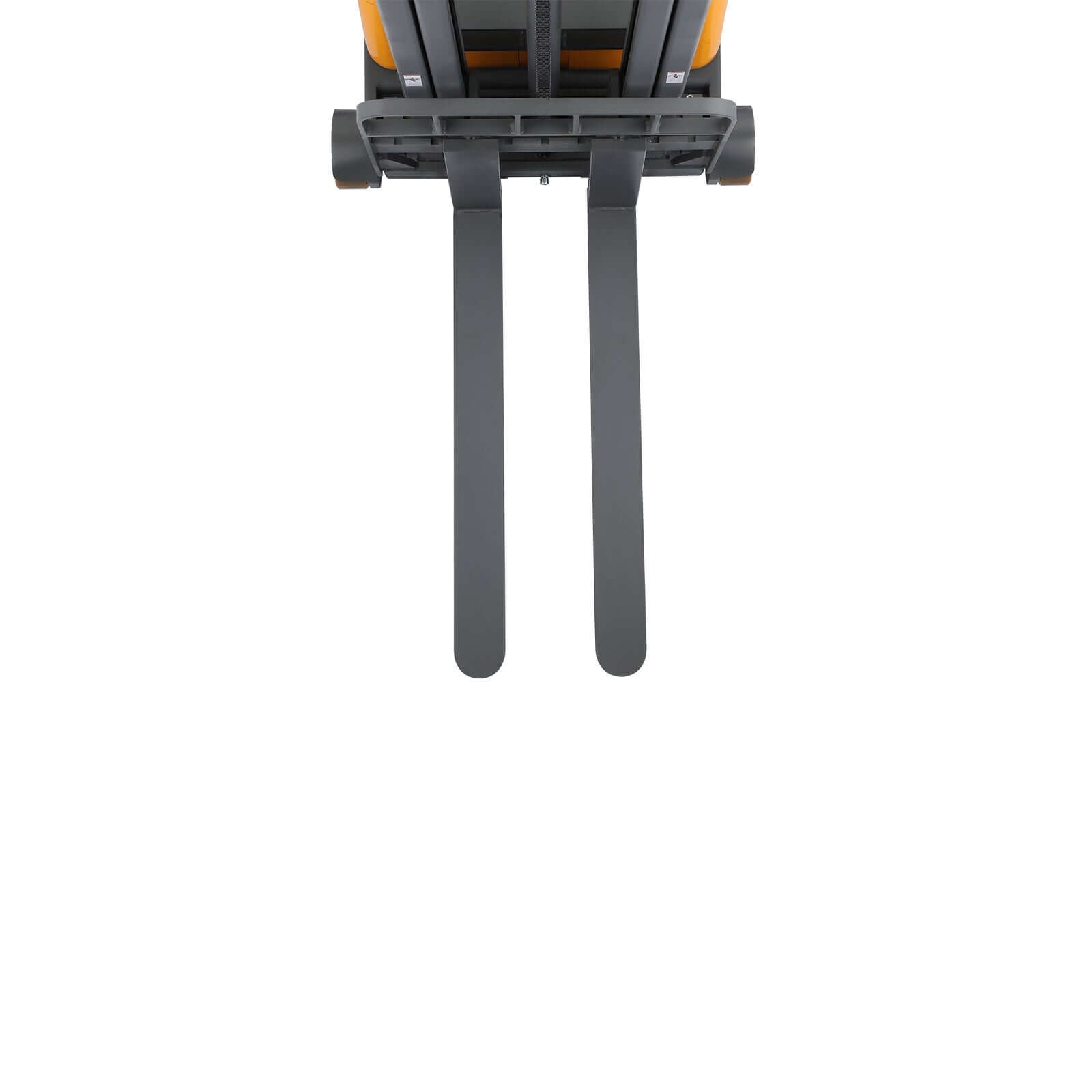

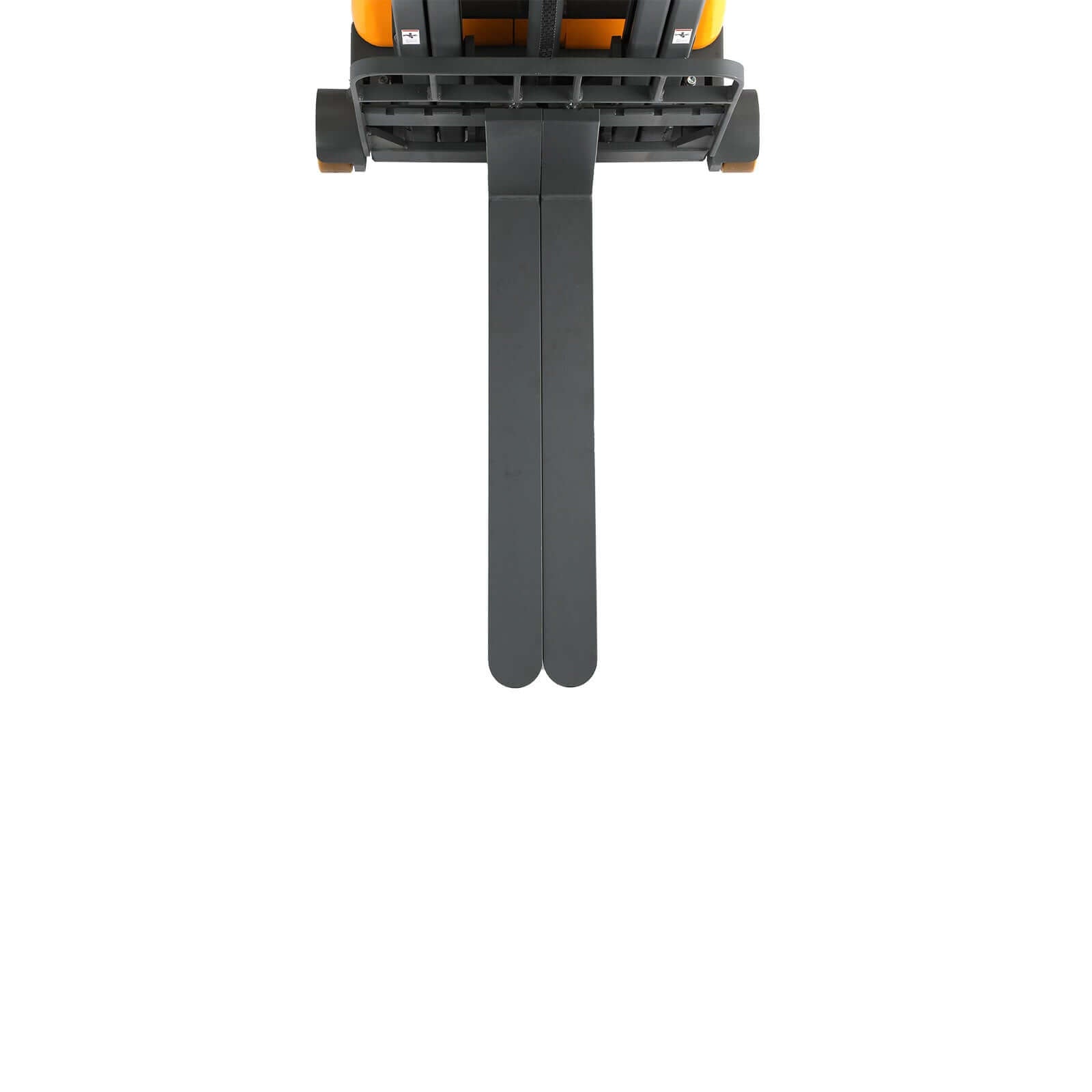

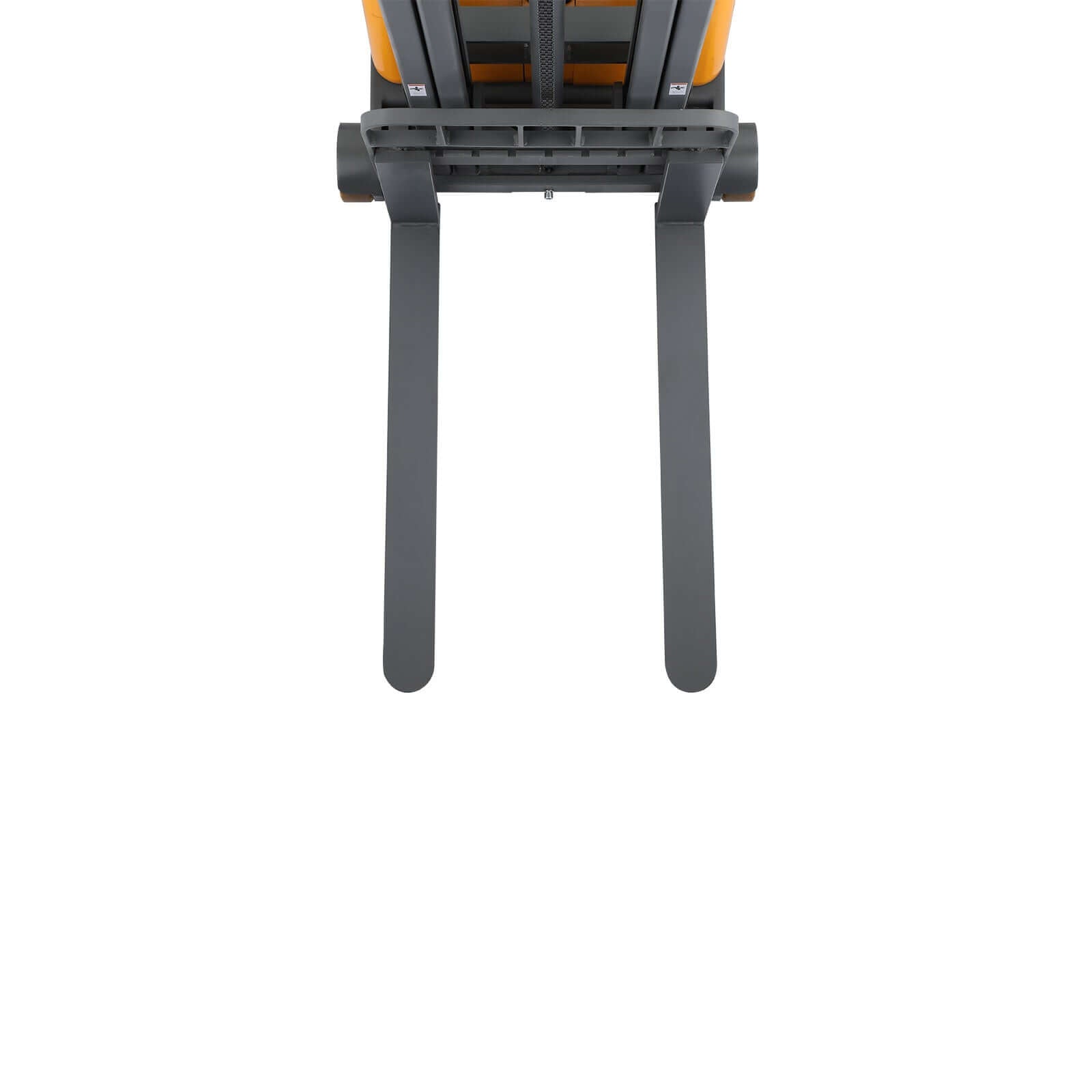

Adjustable Overall Fork Width 8.7–25.4 in
Individual Fork Width 3.9 in
Fork Thickness 1.3 in
Inside Fork Spacing 0.9–17.6 in
Lowered Fork Height 1.3 in
Mast Tilt Angle (Forward/Backward) 1° / 3°
Turning Radius 52.5 in
Minimum Aisle Width 113.4 in
Travel Speed (Loaded / Unloaded) 2.4 / 2.6 mph
Lift Speed (Loaded / Unloaded) 4.3 / 5.9 in/s
Lowering Speed (Loaded / Unloaded) 3.5 / 3.2 in/s
Battery Type GEL
Battery Voltage / Capacity 24V / 125Ah
Charger Built-In 24V / 10A Charger
Service Weight 2,720 lb
Gross Weight 2,730 lb
Shipping Package Dimensions 60 × 34 × 85 in
Warranty 1-Year Limited Warranty
TORY CARRIER 2,200 lb electric stacker product specifications

User Documentation

Download Product Manual (PDF, 2.56 MB)

👉Installation and Operation Video

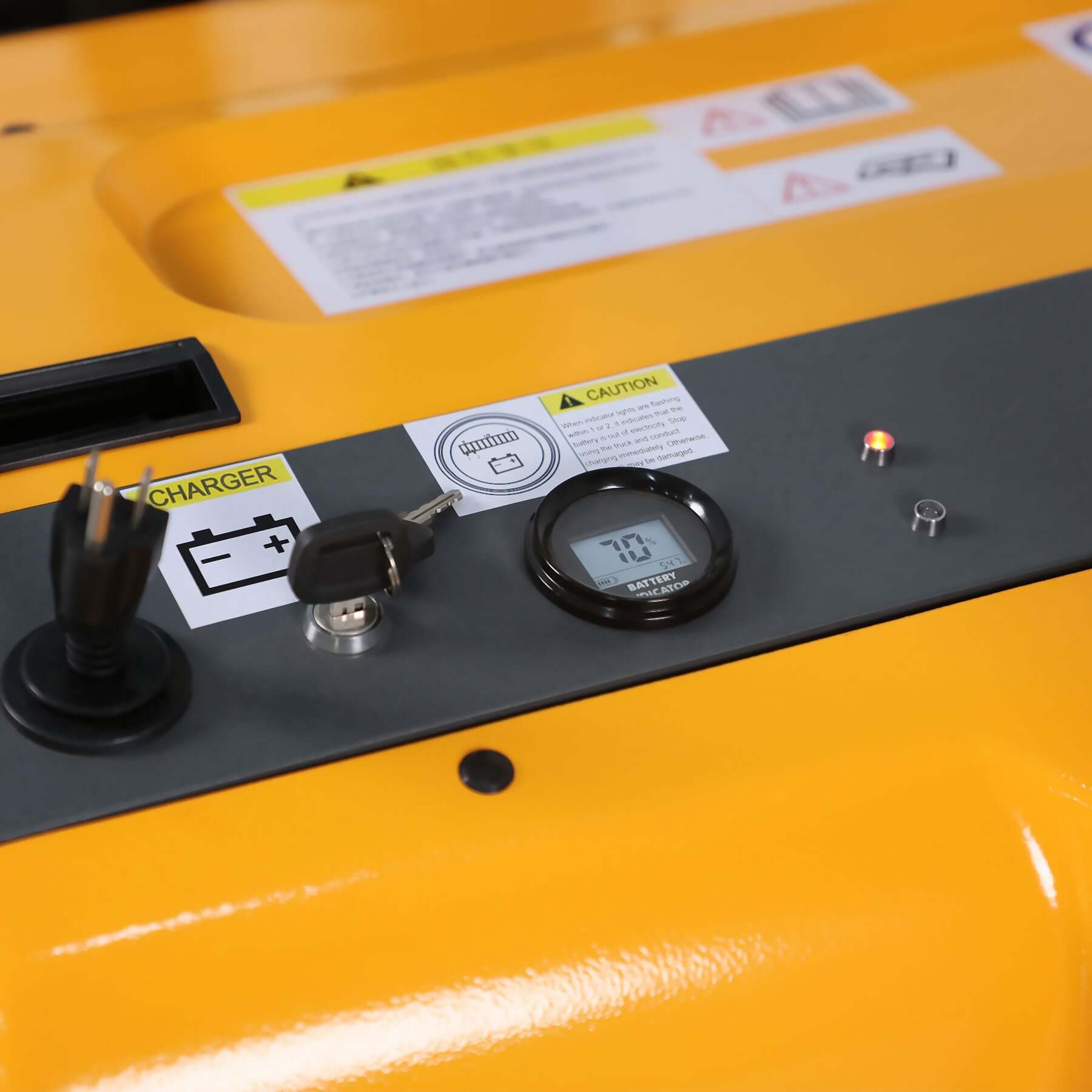

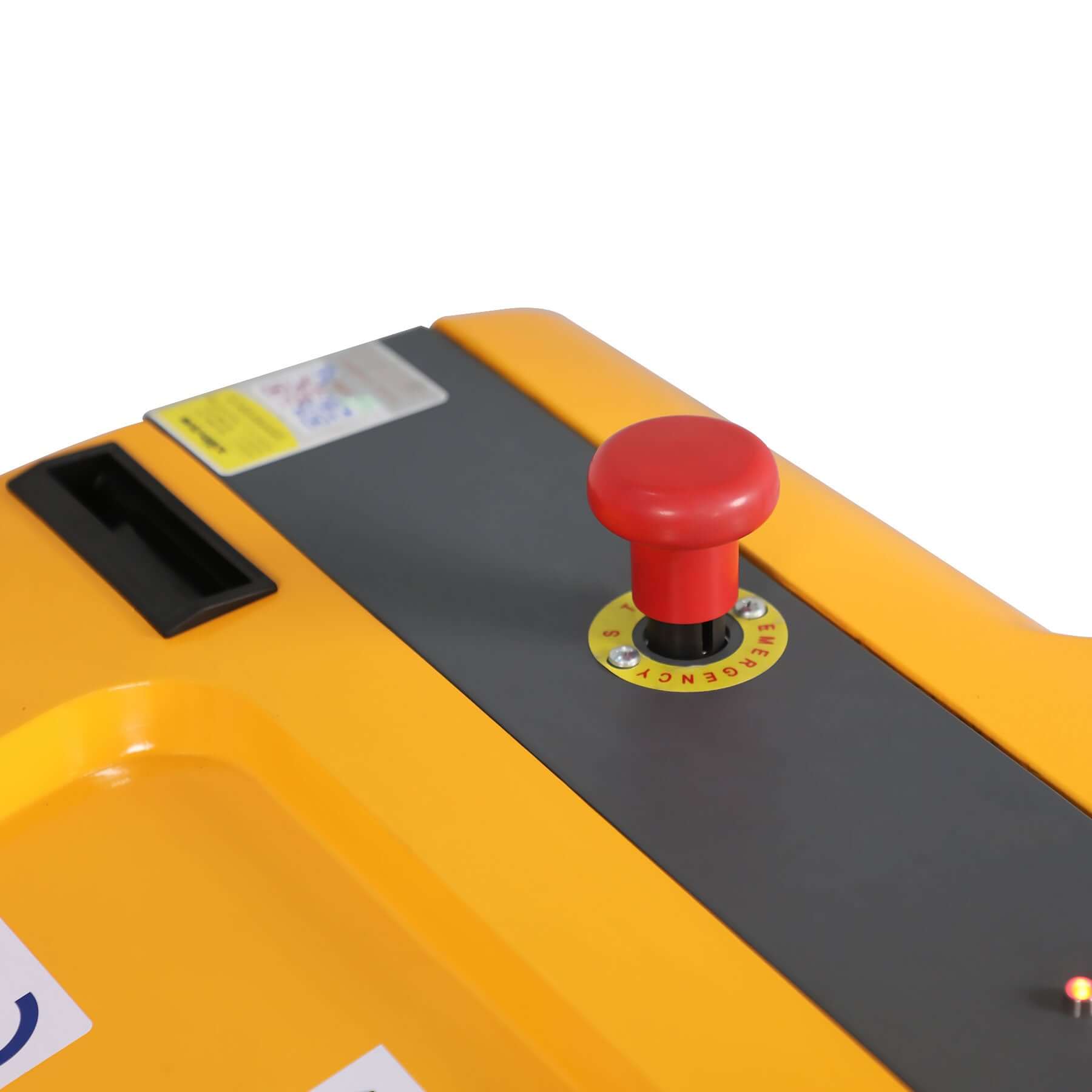

With emergency stop switch and electricity lock button

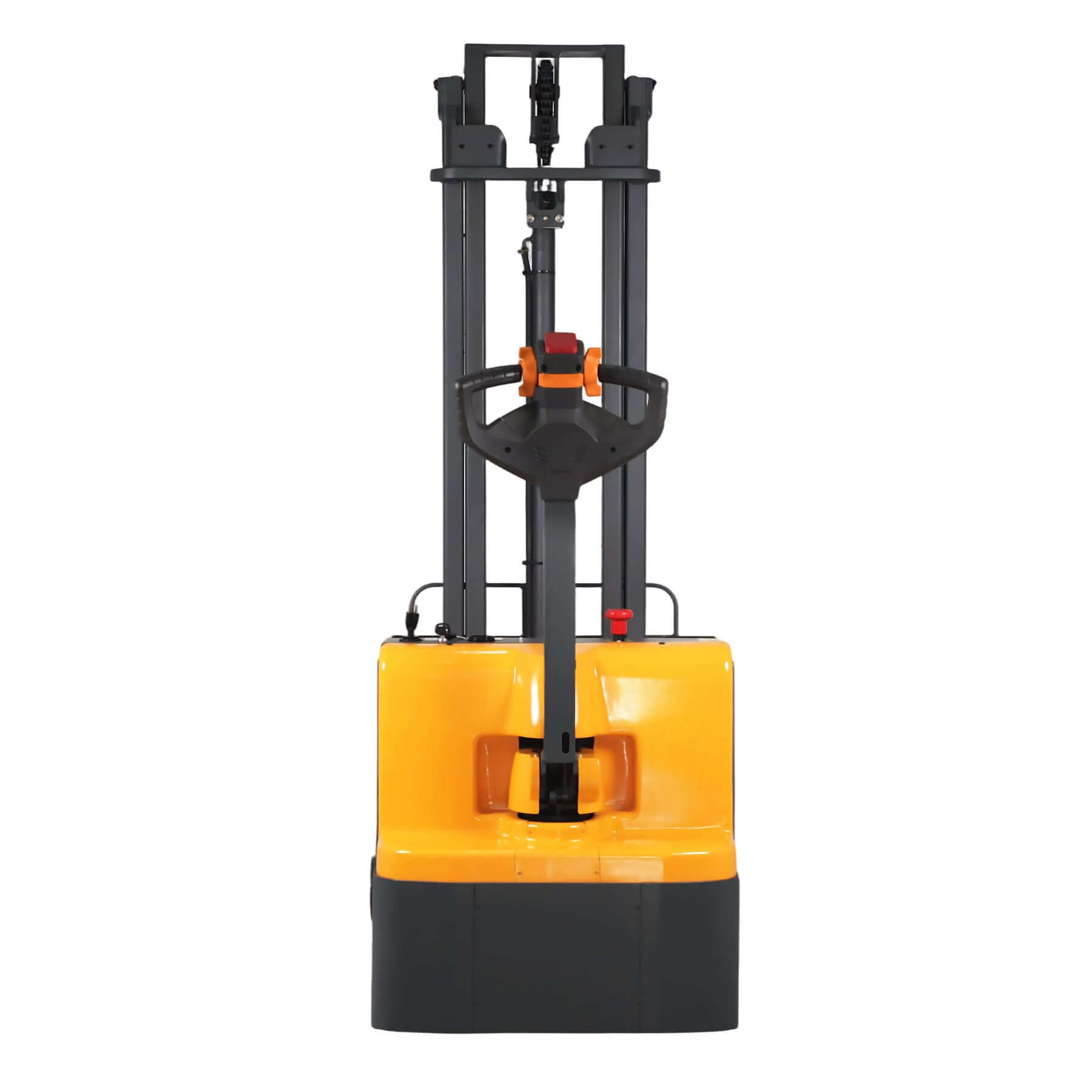

Ergonomic long handle with integrated control buttons and turtle speed mode for comfortable, precise, and easy operation in tight spaces.

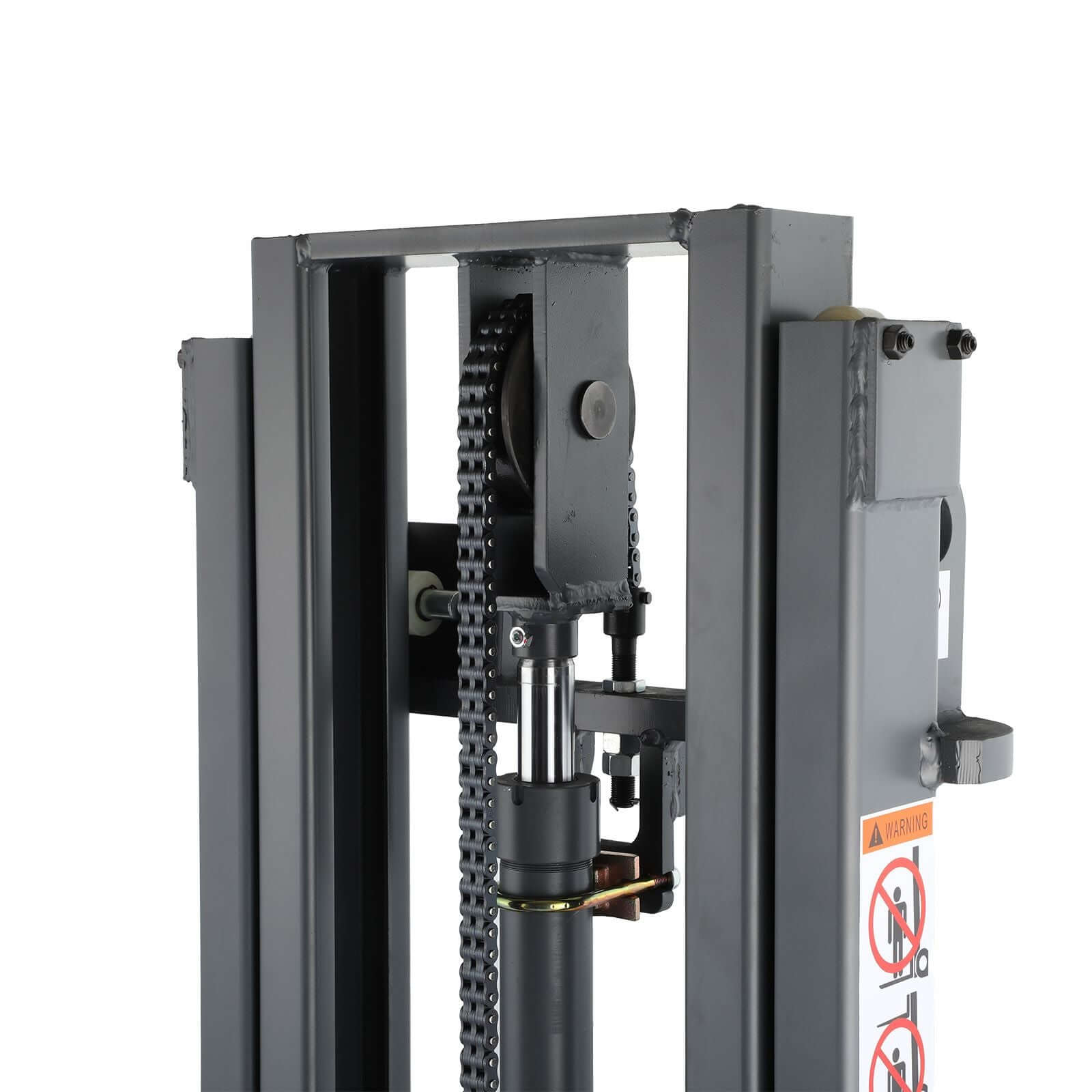

Reinforced steel wide gantry for a wide field of view.

Counterbalance Stacker FAQ

What is the maximum load capacity of Tory Carrier Counterbalance Stackers?

Depending on the model, Tory Carrier Counterbalance Stackers can handle loads ranging from 1,200 lbs to 3,300 lbs, suitable for medium to heavy-duty warehouse operations.
Are these stackers suitable for narrow aisle applications?

Yes, Counterbalance Stackers are designed with compact turning radii and optimized mast designs, making them efficient in narrow aisles while maintaining stability.
What type of power options are available?

Tory Carrier Counterbalance Stackers come with electric drive systems, powered by 24V–48V batteries, offering long operating hours, low maintenance, and zero emissions for indoor use.
How is operator safety ensured?

Safety features include electromagnetic service brakes, overload protection, mast tilt limiters, ergonomic standing or seated controls, and non-marking PU wheels for stable and secure handling.
