Product Details

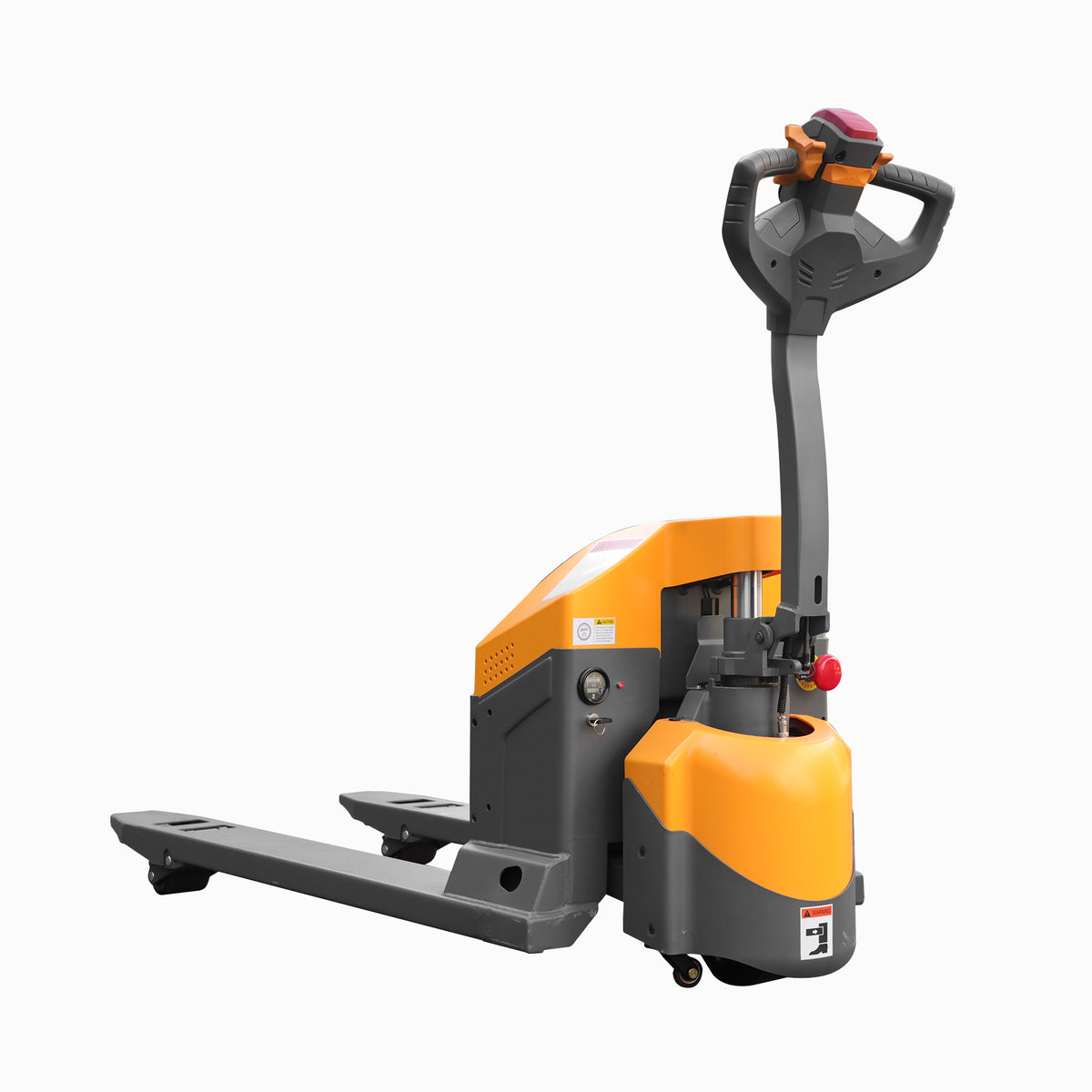

The TORY CARRIER Flagship Electric Pallet Jack is designed for users who need higher durability, stronger performance, and longer operating time. Compared with standard models, this flagship version features upgraded build quality, a larger-capacity battery, and a maintenance-free brushless drive motor, delivering more stable power output and longer service life in daily warehouse operations.
It is suitable for warehouses, retail environments, distribution centers, and tight working spaces such as containers or narrow aisles. The enhanced structural design, reinforced components, and smoother travel system make this model ideal for high-frequency, heavy-duty use.
Available Models
3300 lb Capacity — 24V 65Ah GEL battery, 24V/8A external charger
4400 lb Capacity — 24V 105Ah high-capacity battery, 24V/10A built-in charger
Key Features
- Upgraded Large-Capacity Battery — Longer runtime and stronger load endurance, reducing charging interruptions.
- Maintenance-Free Brushless Drive Motor — Higher efficiency, no brush replacement needed, and improved long-term reliability.
- Enhanced Build Quality — Reinforced chassis, stronger structural integrity, and higher manufacturing precision for extended lifespan.
- Floating Balance Wheel System — Stabilizes travel, reduces side swing, and improves performance on uneven floors.
- Reinforced Swingarm Mechanism — Reduces long-term wear and minimizes fork deviation under heavy use.
- Upper horizontal drive motor — Protects the motor from dust, water, and oil, ensuring a longer operating life.
- Ergonomic Multi-Function Handle — Integrated lift, lower, drive, and emergency stop controls.
- Turtle Speed Mode — Enables precise control in narrow aisles or crowded areas.
- Height Limit Switch — Prevents over-lifting and protects the hydraulic system.
- Built-in or External Charger Options — Full charge in 6–8 hours depending on the model.
- Compact and Space-Saving Design — Suitable for trucks, containers, and tight storage areas.
- Durable and Maintenance-Friendly — Improved rock-arm design reduces deflection and extends overall equipment lifespan.
- Battery Maintenance Reminder — Charge the battery once a month when not in use to protect long-term battery health.
| Model Name | T-1029/T-1028/R-1030 |
| Load Capacity | 3300/3900/4400 LBS |
| Load Center Distance | 23.6 inch |
| Height, Mast Lowered | 3 inch |
| Lifting Height | 7.3 inch |
| Fork Dimensions | 48*27*2 inch |
| Lifting Speed(Laden/Unladen) | 1.0/1.2 inch/s |
| Travel Speed (Laden/Unladen) | 2.7/3.0 miles/h |
| Wheel Diameter | 7.7 inch |
| Turning Radius | 60/59.5 inch |
| Battery Type | GEL |
| Battery Capacity | 24V/65Ah/24V/105AH |
| Charger |
24/8A built-out/
24/5A built-in/
24V/10A built-in
|
| Service Weight | 487/530 LBS |
Warranty
| Warranty | 1-Year Limited Warranty |
User Documentation
Download Tory Carrier Electric Pallet Truck Manual (1029/1030 Series)
Certifications & Compliance
Built to Meet Key Safety & Compliance Standards
Tory Carrier equipment is designed for dependable material handling performance, with selected models meeting applicable CE, EMC, and UKCA compliance requirements. Please verify certification availability for the specific model before purchase.
CE Marked
Indicates conformity with applicable European safety, health, and environmental protection requirements.
EMC Compliant
Designed to meet electromagnetic compatibility requirements for stable and safe electrical operation.
UKCA Marked
Indicates conformity with applicable UK product compliance requirements for selected equipment models.
1) Make replacing the driving wheel easier
2) Effectively prevent water, dust, and oil from sticking to the motor, to improve the working condition of the motor
Displays battery level and fault codes clearly, with integrated key switch for easy machine control.
Protective wheel guard helps prevent foot injuries while moving through tight working areas.
Quick-response emergency stop enhances operator safety during operation.
Incorporates butterfly-style thumb controls, emergency reversebutton, horn button and key switch for ease of use.
Wear-resistant PU wheel provides smooth rolling, enhanced stability, and long-lasting performance for daily material handling tasks.
Ordering & Shipping
How can I place an order?
You can order directly through our website or contact our sales team for bulk purchases and customized solutions.
What payment methods do you accept?
We accept credit cards, wire transfers, and PayPal for secure and convenient transactions.
How long does shipping take?
Standard orders are processed within 1-3 business days, with delivery times varying based on your location. Expedited shipping options are available upon request.
How can I get a discount on my order?
We’re happy to help you save! Here are ways to unlock discounts:
- Bulk order savings: Customized discounts are available for multi-piece purchases. Contact our Customer Support Team via [email/phone/live chat] to discuss your needs.
- Seasonal deals: Check our [Promotions Page] during holidays or special events.
What’s in the Box
Every order includes:
✅ Electric Pallet Jack (Main Unit)
✅ Ergonomic Handle
✅ User Manual
✅ Battery Charger
All items are securely packaged to ensure safe delivery.
